💧 Aquaporins: Molecular
Marvels
Water Transport Channels in Plant Cells
🔍 Introduction: The Unsung Heroes of Water Transport
Aquaporins are integral membrane proteins that serve as highly selective channels for rapid water movement across biological membranes. Discovered by Peter Agre (Nobel Prize 2003), these molecular marvels facilitate water transport up to 10 billion water molecules per second per channel while maintaining strict selectivity. In plants, aquaporins are essential for water uptake, cell turgor regulation, stomatal movement, and responses to environmental stress.
🏗️ Structure of Aquaporins
📖 Definition
Aquaporins belong to the Major Intrinsic Protein (MIP) superfamily. They form tetrameric complexes in membranes, with each monomer functioning as an independent water channel.
🔬 Key Structural Features
1. Transmembrane Domains
- Six transmembrane α-helices (H1-H6): Span the lipid bilayer
- Five connecting loops (A-E): Link helices on either side of membrane
- Hourglass shape: Narrowest point forms the selectivity filter
- N-terminal and C-terminal: Both located on cytoplasmic side
2. NPA Motifs (Asparagine-Proline-Alanine)
- Two conserved NPA motifs: Located in loops B and E
- Position: Meet in the center of the channel from opposite sides
- Function: Form narrowest part of pore; critical for water selectivity
- Mechanism: Orient water molecules in single file, preventing proton passage
3. Selectivity Filter (ar/R Region)
- Aromatic/arginine constriction: Narrowest point (~2.8 Å diameter)
- Composition: Aromatic residues (Phe, His, Tyr) + Arginine
- Function: Excludes ions and larger molecules; allows only water
- Size exclusion: Too narrow for hydrated ions; perfect for H₂O (2.8 Å)
4. Loop Regions
- Loop B and E: Contain NPA motifs; dip into membrane from opposite sides
- Loop C: Extracellular; contains glycosylation sites
- Loop D: Cytoplasmic; site of regulatory phosphorylation
- Gating: Conformational changes in loops can open/close channel
💡 Water Selectivity Mechanism
- Size exclusion: Narrow pore (2.8 Å) excludes larger molecules
- Electrostatic repulsion: Positive charges repel protons (H₃O⁺)
- Orientation: NPA motifs force water to flip orientation, breaking proton wire
- Hydrogen bonding: Channel walls form H-bonds with water, facilitating passage
🌿 Types of Aquaporins in Plants
Plants have evolved four major subfamilies of aquaporins, each with distinct localization, substrate specificity, and physiological functions. This diversity allows precise regulation of water and solute transport across different membranes and tissues.
1. Plasma Membrane Intrinsic Proteins (PIPs)
📖 PIPs: Location & Function
PIPs are located in the plasma membrane and are the most abundant plant aquaporins. They primarily facilitate water transport across the plasma membrane, regulating cell turgor, stomatal movement, and overall plant water relations.
🔬 PIP Subgroups
🌱 PIP Functions
- Root water uptake: PIPs in root epidermis and cortex facilitate water absorption from soil
- Stomatal movement: PIPs in guard cells regulate turgor changes during opening/closing
- Cell expansion: PIPs enable rapid water influx during cell growth
- Leaf hydraulics: PIPs in leaf veins and mesophyll regulate water distribution
- Stress responses: PIP expression changes during drought, salinity, cold stress
⚠️ Correction: PIP1 vs PIP2
Original article states: "PIP1 predominantly involved in maintaining cell turgor... PIP2 crucial for transport through xylem."
Clarification: Both PIP1 and PIP2 contribute to turgor and water transport. Key difference: PIP2 has high water transport activity alone, while PIP1 has low activity alone but enhances PIP2 when forming heterotetramers. Both are found in roots, leaves, and other tissues.
2. Tonoplast Intrinsic Proteins (TIPs)
📖 TIPs: Location & Function
TIPs are located in the tonoplast (vacuolar membrane). They regulate water movement between cytoplasm and vacuole, controlling cell turgor, vacuolar volume, and osmotic balance.
🔬 TIP Subgroups
🌱 TIP Functions
- Vacuolar water storage: TIPs enable rapid water influx/efflux, buffering cellular water status
- Turgor regulation: TIPs adjust vacuolar volume, maintaining cell rigidity
- Osmotic adjustment: TIPs facilitate osmotic balance during stress (drought, salinity)
- Seed development: TIP3s in protein storage vacuoles crucial for seed maturation and germination
- Stress tolerance: TIP expression increases during drought, enabling cellular dehydration tolerance
3. NOD26-Like Intrinsic Proteins (NIPs)
📖 NIPs: Location & Function
NIPs are a diverse group found in various membranes (plasma membrane, tonoplast, ER). Unlike PIPs and TIPs, many NIPs transport small molecules besides water, including glycerol, urea, boric acid, and silicon.
🔬 NIP Subgroups
🌱 NIP Functions
- Nutrient uptake: NIPs transport essential nutrients (boron, silicon) into roots
- Water transport: Some NIPs facilitate water movement, though less efficiently than PIPs/TIPs
- Detoxification: NIPs transport urea, glycerol, and other small molecules
- Stress tolerance: Silicon-transporting NIPs enhance resistance to pests, diseases, and abiotic stress
- Development: Boron-transporting NIPs essential for cell wall formation and reproductive development
💡 NIPs: Multifunctional Channels
Unlike PIPs and TIPs (primarily water-selective), many NIPs are aquaglyceroporins—they transport water and small uncharged molecules (glycerol, urea, boric acid, silicic acid). This makes NIPs crucial for nutrient acquisition and stress responses.
4. Small Basic Intrinsic Proteins (SIPs)
📖 SIPs: Location & Function
SIPs are the least characterized plant aquaporin subfamily. They are typically located in the endoplasmic reticulum (ER) and may transport water, CO₂, or other small molecules.
🔬 SIP Characteristics
- Localization: Primarily ER membrane; some in plasma membrane
- Structure: Shorter than other aquaporins; missing some conserved motifs
- Substrates: Water, CO₂, possibly other small molecules (unclear)
- Functions: ER water balance, CO₂ transport, stress responses (poorly understood)
🌱 SIP Functions (Emerging Evidence)
- ER homeostasis: SIPs may regulate water balance within ER lumen
- CO₂ transport: Some evidence suggests SIPs facilitate CO₂ diffusion for photosynthesis
- Stress responses: SIP expression changes during drought and salinity stress
- Development: SIPs implicated in root development and seed germination
⚠️ Correction: SIP Functions
Original article states: "SIP1 associated with water transport... SIP2 implicated in urea transport."
Clarification: SIP functions are poorly characterized. While some studies suggest water/CO₂/urea transport, evidence is limited. More research needed to confirm specific substrates and physiological roles.
⚙️ Regulation of Aquaporins
Aquaporin activity is tightly regulated at multiple levels to match plant water needs with environmental conditions. This regulation occurs through transcriptional control, post-translational modifications, and gating mechanisms.
🔬 Regulatory Mechanisms
1. Transcriptional Regulation
- Gene expression: Aquaporin gene transcription changes in response to environmental cues
- Drought: Some PIPs/TIPs upregulated; others downregulated (species-specific)
- Salinity: Altered expression to maintain osmotic balance
- Hormones: ABA, auxin, cytokinin regulate aquaporin gene expression
2. Post-Translational Modifications
- Phosphorylation: Addition of phosphate groups (Ser, Thr residues) can open/close channels
- Dephosphorylation: Removal of phosphates reverses effect
- Glycosylation: Sugar modifications affect stability and trafficking
- pH sensitivity: Cytoplasmic pH changes can gate aquaporins (protonation of His residues)
3. Gating (Channel Opening/Closing)
- Conformational changes: Loop movements can physically block pore
- Calcium: Elevated cytoplasmic Ca²⁺ can close some aquaporins
- pH: Acidic cytoplasm closes channels; alkaline opens them
- Reactive oxygen species (ROS): H₂O₂ can modulate aquaporin activity
4. Subcellular Trafficking
- Membrane insertion: Aquaporins synthesized in ER, trafficked to target membranes
- Endocytosis: Internalization removes aquaporins from plasma membrane
- Recycling: Internalized aquaporins can be re-inserted or degraded
💡 Rapid Regulation
Post-translational modifications (phosphorylation, pH, Ca²⁺) enable rapid regulation (seconds to minutes), allowing plants to quickly adjust water permeability in response to sudden environmental changes (e.g., drought onset, flooding).
🌍 Physiological Roles of Aquaporins
🌱 Key Functions in Plants

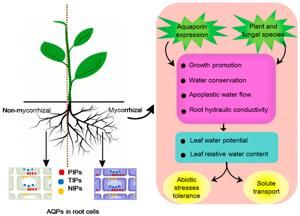

- Root water uptake: PIPs and TIPs in root epidermis and cortex facilitate water absorption from soil
- Cell turgor regulation: Aquaporins enable rapid water influx/efflux, maintaining cell rigidity
- Stomatal movement: PIPs in guard cells regulate turgor changes during opening/closing
- Leaf hydraulics: Aquaporins in veins and mesophyll distribute water for photosynthesis
- Cell expansion: Aquaporins enable rapid water uptake during cell growth
- Stress responses: Aquaporin expression/activity adjusts during drought, salinity, cold, flooding
- Nutrient transport: NIPs transport boron, silicon, and other nutrients
- Seed development: TIP3s in protein storage vacuoles crucial for seed maturation and germination
❌ Common Misconceptions (Corrections)
🔍 Misconception 1: Aquaporins Only Transport Water
Correction: While PIPs and TIPs are primarily water-selective, many NIPs transport other molecules (glycerol, urea, boric acid, silicon). These are called aquaglyceroporins.
🔍 Misconception 2: All Aquaporins Have Same Function
Correction: Different subfamilies have distinct functions: PIPs (plasma membrane water transport), TIPs (vacuolar water balance), NIPs (nutrient + water transport), SIPs (ER functions, poorly understood).
🔍 Misconception 3: Aquaporins Are Always Open
Correction: Aquaporins are tightly regulated via phosphorylation, pH, Ca²⁺, and gating. Plants can rapidly close aquaporins to reduce water loss during stress.
🔍 Misconception 4: PIP1 and PIP2 Have Completely Different Functions
Correction: Both PIP1 and PIP2 transport water. Key difference: PIP2 is highly active alone; PIP1 has low activity alone but enhances PIP2 in heterotetramers. Both contribute to overall water transport.
🔑 Key Takeaways
📌 Essential Points
- Aquaporins are integral membrane proteins forming selective water channels
- Structure: Six transmembrane helices, two NPA motifs, ar/R selectivity filter
- Selectivity: NPA motifs and narrow pore exclude ions; allow only water (or small molecules in NIPs)
- Four plant subfamilies: PIPs (plasma membrane), TIPs (tonoplast), NIPs (various, transport nutrients), SIPs (ER, poorly characterized)
- PIPs: Primary water transporters; PIP2 highly active, PIP1 enhances PIP2 in heterotetramers
- TIPs: Regulate vacuolar water balance, turgor, osmotic adjustment
- NIPs: Transport water + small molecules (glycerol, urea, boron, silicon)
- Regulation: Transcriptional control, phosphorylation, pH, Ca²⁺, gating enable rapid adjustment
- Functions: Root uptake, turgor, stomatal movement, cell expansion, stress responses, nutrient transport
- Speed: Up to 10 billion H₂O molecules/second per channel
❓ FAQs
🔍 Frequently Asked Questions
A: Aquaporins are integral membrane proteins that form selective channels for rapid water transport across biological membranes. They facilitate movement of up to 10 billion water molecules per second per channel.
A: Aquaporins have six transmembrane α-helices, two conserved NPA (Asn-Pro-Ala) motifs, and an aromatic/arginine (ar/R) selectivity filter. They form tetramers, with each monomer functioning independently.
A: Narrow pore diameter (2.8 Å) excludes larger molecules. NPA motifs orient water molecules in single file, breaking proton wire. Positive charges repel protons (H₃O⁺). Only water (2.8 Å) fits perfectly.
A: Four major subfamilies: (1) PIPs—plasma membrane; (2) TIPs—tonoplast (vacuolar membrane); (3) NIPs—various membranes, transport nutrients; (4) SIPs—ER, poorly characterized.
A: PIPs facilitate water transport across plasma membrane, regulating cell turgor, root water uptake, stomatal movement, leaf hydraulics, and cell expansion. PIP2 is highly active; PIP1 enhances PIP2 in heterotetramers.
A: TIPs regulate water movement between cytoplasm and vacuole, controlling vacuolar volume, cell turgor, osmotic balance, and stress responses. TIP3s are seed-specific, crucial for seed development.
A: NIPs transport water and small molecules (glycerol, urea, boric acid, silicon). They're crucial for nutrient uptake (boron, silicon), osmotic balance, detoxification, and stress tolerance.
A: No! Aquaporins are found in all domains of life—plants, animals, fungi, bacteria. Peter Agre won the 2003 Nobel Prize for discovering mammalian aquaporins (AQP1).
A: Multiple levels: (1) Transcriptional control (gene expression changes); (2) Post-translational modifications (phosphorylation, glycosylation); (3) Gating (pH, Ca²⁺, conformational changes); (4) Subcellular trafficking.
A: Yes! While PIPs and TIPs are primarily water-selective, many NIPs (aquaglyceroporins) transport glycerol, urea, boric acid, and silicon. Some aquaporins also transport CO₂, H₂O₂, or ammonia.
📝 Exam Questions
Short Questions (5 marks each)
- Define aquaporins and state their primary function.
- Describe the basic structure of aquaporin proteins.
- What are NPA motifs and what is their function?
- List the four major subfamilies of plant aquaporins.
- Where are PIPs located and what is their primary role?
- What is the function of TIP aquaporins?
- How do NIPs differ from PIPs and TIPs in substrate specificity?
- Describe two mechanisms of aquaporin regulation.
- What is the role of aquaporins in stomatal movement?
- How do aquaporins contribute to drought stress responses?
Long Questions (10 marks each)
- Describe the structure of aquaporins. Explain how the structure enables selective water transport while excluding ions and protons.
- Compare and contrast the four major subfamilies of plant aquaporins (PIPs, TIPs, NIPs, SIPs) in terms of localization, substrates, and functions.
- Discuss the physiological roles of aquaporins in plants. Include root water uptake, cell turgor, stomatal movement, and stress responses.
- Explain how aquaporins are regulated in plant cells. Discuss transcriptional, post-translational, and gating mechanisms.
- What are aquaglyceroporins? Describe their structure, substrates, and physiological significance in plants.
